Ferrofish

German made products for professional audio, live music, broadcast, music industry, commercial audio, theater, military and government applications.

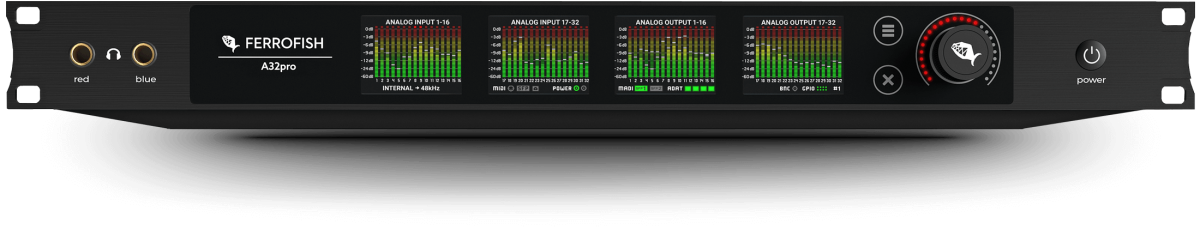

Ferrofish A32 Pro

"The A32pro is based on a new modular hardware platform and packed with analog and digital interfaces. In addition to the 32, 32 balanced studio-quality analog inputs and outputs and the stereo main out up to 192kHz, the A32pro offers both ADAT and MADI probably the most widely used digital audio interfaces available. In addition to the optical first MADI module, another SFP MADI module can be added. Different modes allow redundant operation of both interfaces: If one fails, the other one is activated automatically. Speaking of redundancy: If desired, two power supplies can be connected to the device. All power supplies and interfaces are permanently monitored: In the event of a failure, an error message is output on the TFT screens and on the General Purpose Output (GPO) to connect it to additional hardware. Packed into a compact 1RU, the highly integrated converter is equipped with 32 x 32 balanced analog channels, brought out on eight D-SUB connectors. They deliver studio levels up to +20dBu, individually adjustable in 1dB steps. The sophisticated design, using the latest generation of ESS converters, accompanied with a temperature-compensated clock and jitter reduction PLL, guarantees best crystal clear sound up to 192kHz. The A32pro is not just a converter, but thanks to its flexibility, using a sophisticated routing matrix, it is also a digital format converter for integrating your exisiting and future MADI and ADAT equipment. Even operation of the A32pro is done without any compromise, almost self explaining, as with all our products: A total of four multitouch TFT screens show the levels of all 64 I/O channels, it can't be done better. Controlling the unit also benefits from the screens due to it's highly intuitive graphical user interface. Remote control is of course also possible via USB, MIDI, MIDI-over-MADI or GPI. Even a simple MIDI CC mode lets you control the most wanted parameters from distance. The two headphone outputs let you monitor any analog or digital input or output. For more demanding tasks the headphone monitoring matrix even feature a M/S decoder mode and a balanced operation mode for high-end headphones."

$2,899.00

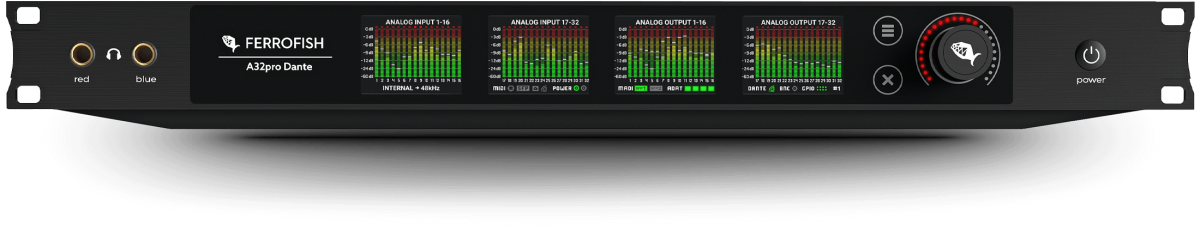

Ferrofish A32 Pro Dante

"The A32pro Dante is our flagship connecting digital and analog audio to the world of Dante: All interfaces, whether analog, MADI or ADAT, are brought using the integrated routing matrix into the Dante network. Of course, all features of the A32pro are still available. The A32pro Dante is not just a converter it's also the ultimate problem solver thanks to its incredible flexibility, thanks to its modular hardware platform. Overall, the A32pro Dante processes 386 channels, all highly integrated into a 1 slim rack unit. Enumerating all the configurations of the A32pro Dante is almost impossible: in addition to the 32 x 32 studio-grade balanced analog inputs and outputs up to 192kHz, there are a stereo main out, four ADAT I/O, two MADI I/O ports (SFP slots) and of course Dante, brought out redundant on two RJ45 jacks. Everything is routable in groups of 8 channels each. Clarity and operational reliability has first priority: Both Dante and MADI are laid out redundant, an essential feature for live operation! Of course, a second power supply can be connected, and thanks to the four multitouch TFT screens, the user always has full control. Packed into a compact 1RU, the highly integrated converter is equipped with 32 x 32 balanced analog channels, brought out on eight D-SUB connectors. They deliver studio levels up to +20dBu, individually adjustable in 1dB steps. The sophisticated design, using latest generation ESS converters, accompanied with a temperature-compensated clock and jitter reduction PLL guarantees best crystal clear sound up to 192kHz. Even operation of the A32pro Dante is done without any compromise, almost self explaining, as with all our products: A total of four multitouch TFT screens show the levels of all 64 channels, it can't be done better. Controlling the unit also benefits from the screens: a sophisticated help system built into the device provides context-sensitive help for the selected function at all times. Control by the RemoteFish App (PC and Mac) is also possible via USB (USB-over-MIDI), MIDI, MIDI-over-MADI and Dante. The two headphone outputs can monitor any analog or digital input or output: ideal for control or monitoring. As a monitoring format mono, stereo and even M/S is possible. In addition to the dual stereo operation a fully balanced mode using both outputs for even more output power is available."

$3,899.00

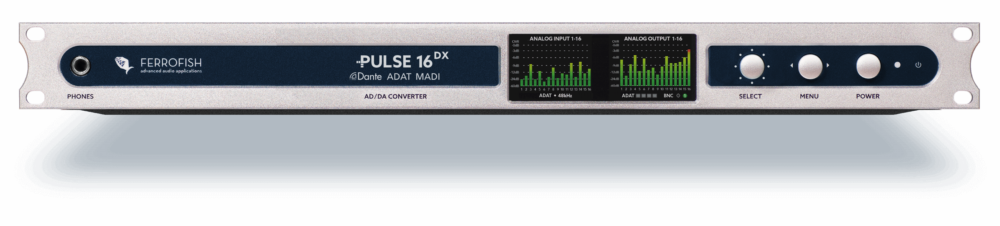

Ferrofish Pulse 16 DX

"The PULSE16 DX is much more than a 16 x 16 channel AD / DA converter. In addition to studio-grade analog inputs and outputs up to 192kHz, the PULSE16 DX offers an impressive number of digital interfaces, ready for any task. All equipment, whether analog, ADAT, or MADI is brought together into the device, and can be distributed over a sophisticated routing matrix in groups of 8 channels. And that's not all: The Dante interface with 64 x 64 channels (also integrated into the routing matrix), redundantly implemented via two RJ45 sockets, connects the PULSE16 DX to the network: Dante opens up a new dimension of flexibility. No matter which analog or digital signals are to be connected: the PULSE16 DX does the job. Packed in a just 1HU, this highly integrated converter has 16 x 16 balanced analog TRS sockets using studio levels up to +20dBu individually adjustable in 1dB steps. The Low Latency Cirrus Logic converters, accompanied with a a temperature-compensated clock and jitter reduction PLL guarantee best crystal clear sound. Besides Dante, the 4 x 4 ADAT ports deliver enough bandwidth to convert all 16 x 16 analog signals at 96kHz, or even 32 x 32 channels at 48kHz. MADI adds another 64 x 64 channels, and is implemented using a modular SFP conection to offer different MADI standards (like Singlemode). Just replace the MADI module by a different model. Configuring the device is a breeze thanks to the two TFT screens. No need to consult the manual, every information is displayed clearly on the screens. Remote control via MIDI and MADI is also possible. The headphone can be connected to any analog or digital input or output: ideal for control or monitoring. The fanless, compact 1HU device is the ultimate problem solver for studio, live sound, broadcast and recording wherever high-end, multi-format conversion is needed in the Dante network."

$2,149.00

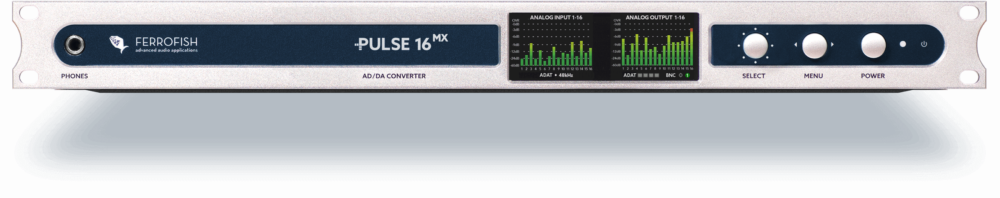

Ferrofish Pulse 16 MX

"The PULSE16 MX offers maximum performance at affordable cost. In addition to the studio-quality 16 x 16 balanced analog inputs and outputs up to 192kHz, the PULSE16 MX offers both ADAT and MADI probably the most widely used digital audio interfaces available. Up to 64 x 64 channels (or 16 x 16 channels at 192kHz) can be transmitted over a simple optical MADI cable pair, so high-end multichannel recording is not a problem. Besides, numerous ADAT channels are provided: At 96kHz, 4 x 4 ADAT ports transfer 16 x 16 channels. Packed in a just 1HU, this highly integrated converter has 16 x 16 balanced analog TRS sockets using studio levels up to +20dBu individually adjustable in 1dB steps. The Low Latency Cirrus Logic converters, accompanied with a temperature-compensated clock and jitter reduction PLL, guarantees best crystal clear sound. The 4 x 4 ADAT ports deliver enough bandwidth to convert all 16 x 16 analog signals at 96kHz, or even 32 x 32 channels at 48kHz. MADI adds another 64 x 64 channels, and is implemented using a modular SFP conection to offer different MADI standards (like Singlemode). Just replace the MADI module by a different model. Configuring the device is a breeze thanks to the two TFT screens. No need to consult the manual, every information is displayed clearly on the screens. Remote control via MIDI and MADI is also possible. The headphone can be connected to any analog or digital input or output: ideal for control or monitoring. The fanless, compact 1HU device is the ultimate choice, when high-end conversion is needed thanks to the elaborated design the PULSE16 MX is the center device for your equipment."

$1,349.00

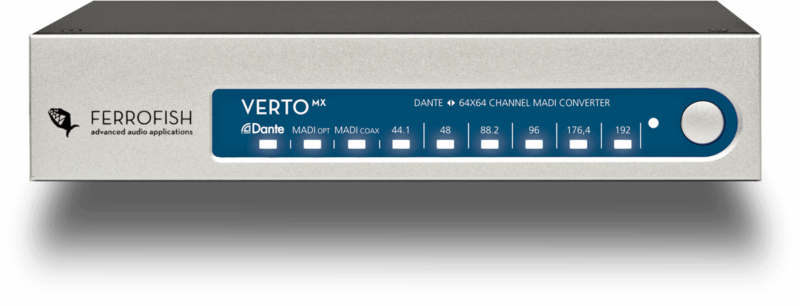

Ferrofish Verto MX

"Dante is the de facto standard for networking audio equipment. With the Verto MX it's now possible to easily integrate your existing beloved MADI equipment into a Dante network. Whether mixer or MADI converter the Verto MX makes all 64 x 64 MADI channels immediately avalilable in the network: plug and play. The ultra compact device has two MADI interfaces, so both optical and coaxial equipment can be connected. If the MADI signal fails, the other interface is automatically switched so that secure redundant operation can be configured. On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto MX supports up to 192kHz sample rate, MIDI jacks for control, and BNC wordclock jacks for external synchronization."

$1,449.00

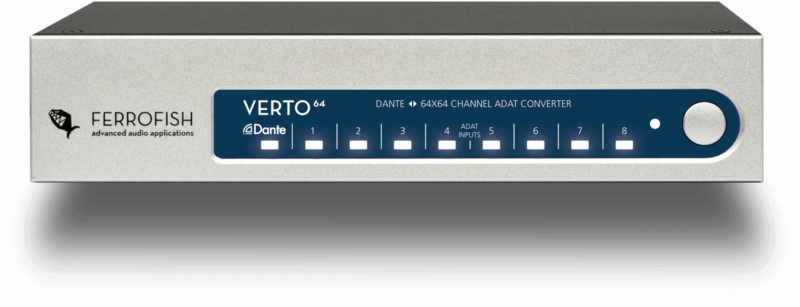

Ferrofish Verto 64

"Dante is the de facto standard for networking audio equipment. With the Verto 64 it's now possible to easily integrate up to 64 x 64 channels via ADAT into a Dante network. No matter which ADAT device you use the Verto 64 makes all channels immediately avalilable in the network: plug and play. The ultra compact device has 16 ADAT connectors: 8 for transmitting, and 8 for receiving digital data (8 channels each). On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto 64 supports up to 96kHz sample rate, MIDI jacks for control, and BNC wordclock jacks for external synchronization."

$1,349.00

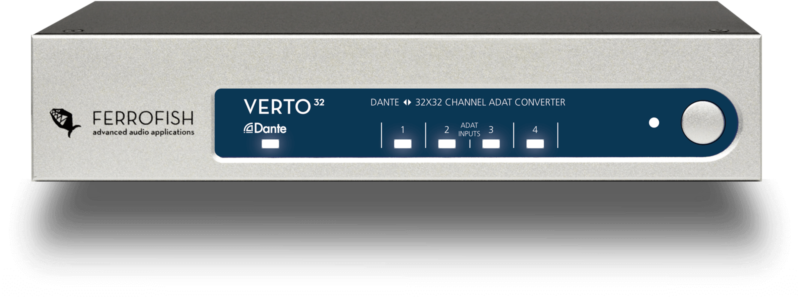

Ferrofish Verto 32

"Dante is the de facto standard for networking audio equipment. With the Verto 32 it's now possible to easily integrate up to 32 x 32 channels via ADAT into a Dante network. No matter which ADAT device you use the Verto 32 makes all channels immediately avalilable in the network: plug and play. The ultra compact device has 8 ADAT connectors: 4 for transmitting, and 4 for receiving digital data (8 channels each). On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto 32 supports up to 96kHz sample rate, MIDI jacks for control, and BNC wordclock jacks for external synchronization."

$1,149.00
